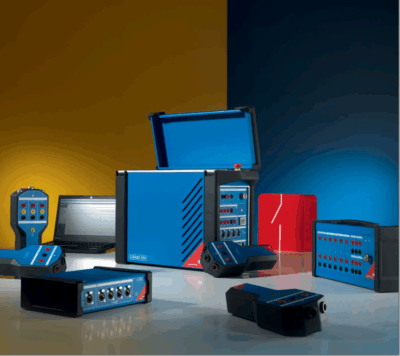

CINABO 500

CINABO 500 is an automated circuit breaker testing system designed for precise assessment of operating times, motion profiles, and mechanical performance. The device supports a wide range of circuit breaker types, from medium-voltage to high-voltage SF₆, vacuum, and air-blast breakers. It performs time measurements, coil evaluation, motor current analysis, and travel curve recording. CINABO 500 integrates seamlessly into OMICRON’s testing framework, offering automated workflows and standardized reporting. Its rugged construction ensures reliable operation in harsh substation environments. The system improves maintenance efficiency, reduces downtime, and ensures compliance with international operating standards.

Key Features

• CB timing and motion analysis

• Compatible with MV and HV breakers

• Automated workflows and reporting

• Motor current and coil performance evaluation

• Rugged construction

• Comprehensive mechanical diagnostics

Applications

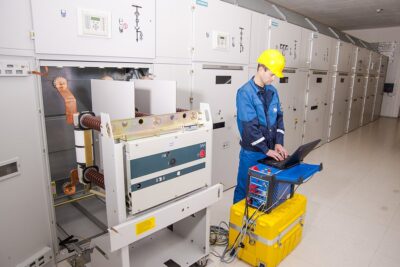

• Circuit breaker testing

• Commissioning and maintenance

• Mechanical performance assessment

• Time and motion diagnostics

• Utility and service teams

Keywords

CINABO 500, circuit breaker tester, CB timing analysis, CB motion measurement, breaker diagnostics
