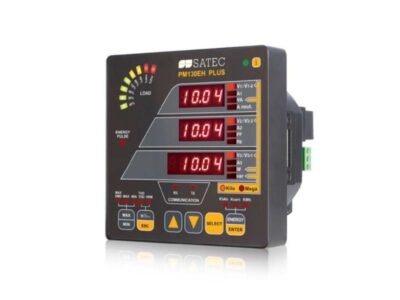

PM130Plus

The PM130Plus is a powerful upgrade of SATEC’s PM130 series, featuring enhanced accuracy, PQ analysis, and robust communication capabilities. It measures all three-phase electrical parameters including voltage, current, active/reactive power, energy, and power factor. With harmonic analysis up to the 63rd order, demand profiling, and event logging, the PM130Plus provides deep insights into power quality and energy usage. The device offers multiple I/O modules for controlling breakers, alarms, and remote indications. Its large graphical display improves local diagnostics, while Modbus/Ethernet communications enable seamless SCADA and EMS integration. Designed for panel mounting, PM130Plus fits a wide range of industrial and commercial distribution boards.

Key Features

• High-accuracy multifunction meter

• Harmonic analysis to 63rd order

• Demand & profile logging

• DI/DO/AI/AO expansion

• Modbus TCP/RTU communication

• Large graphical display

Applications

• Commercial buildings

• Industrial energy monitoring

• Switchgear panels

• PQ supervision and diagnostics

• Sub-metering and load management

Keywords

PM130Plus, panel power meter, harmonic meter, SATEC PM130, energy monitoring
